Golf Rangefinder
The Rangefinder Telescope is a compact, multifunctional laser instrument integrating distance, angle, and speed measurement with high accuracy. It is ideal for power line installation, municipal engineering, forestry surveying, outdoor sports, and more.
Home >
Product Advantage
Ranging Telescope
Data Storage
High Definition Color Screen
Area Measurement
Rotating Eyepiece Focusing
USB Fast Charging
Specifications
- C01
GUANGYAN-C01

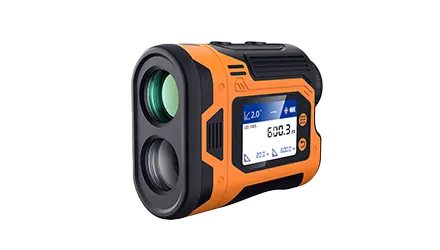

This compact and lightweight laser rangefinder integrates distance, speed and angle measurement functions. It uses an eye-safe pulse laser, supports silent operation, and has an automatic power-off function.
Learn More
| Project | Specifications |
| Measuring Range(Optional) | 500, 600, 800, 1000, 1200, 1800m |
| Magnification | 6X±5% |
| Field of View | 7.0°±5% |
| Scanning Ranging Function | Yes |
| Reading Error | 士(1.0m+Dx0.3%) |
| Speed Measurement Accuracy | ±5km/h |
| Speed Measurement Range | 0~300km/h |
| Height Measurement | Yes |
| Flagpole Locking | Yes |
| Angle Range | ±90° |
| Angle Error | ±1° |
| Diopter Adjustment Range | ±6° |
| Units of Distance | m/Y |
| Objective Caliber | φ23.5mm |
| Eyepiece Caliber | 15.0mm |
| Exit pupil Caliber | φ3.9mm |
| Battery | 800mAh Li-ion |
| Operating Times | ≥2000S |
| Protection Grade | lp65 |
| Operating Temperature | 10℃-50℃ |
| Dimensions | 100*79*42mm |
| Weight | 185g |
| Laser Level | Class1 |
| Laser Wavelength | 905nm |
