Fiber Optic Cleavers
Q1S Fiber Optic Cleaver
Key Features
- ✓Tungsten steel blade
- ✓LED lighting

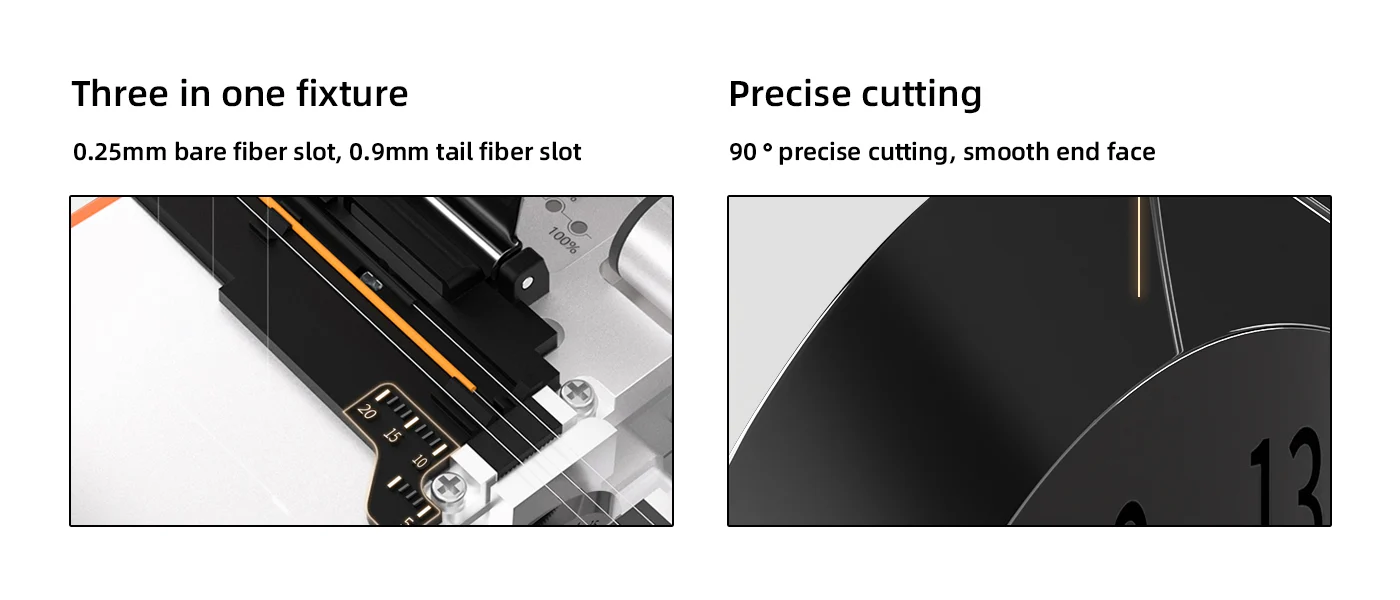

- ✓Three-in-one fixture
- ✓Fiber breaking prevention technology
- ✓Electric and manual dual mode
- ✓Automatic and manual dual modes
Request Quote for Q1S Fiber Optic Cleaver
Factory-direct · OEM available · MOQ 1 pc
Specifications
| Applicable fiber | single core quartz fiber |
|---|---|

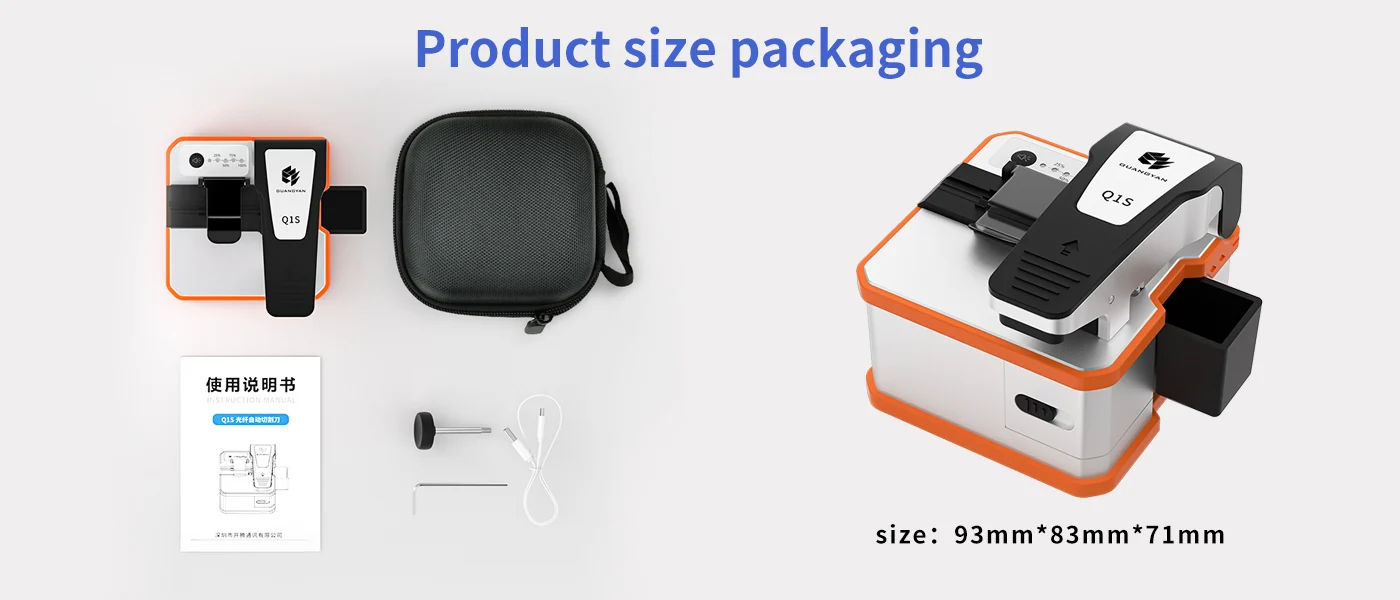

| Product size | 93 * 83 * 71mm |
| Cutting angle | ≤ 0.5 ° |
| Product weight | 390g |
| Battery life | about 5 hours |
| Cutting mode | automatic cutting/manual cutting |
| Applicable fiber coating diameter/cladding diameter | 0.25mm&0.9mm/125um |
| Fiber cutting length | 9-16mm (diameter 0.25mm), 10-16mm (diameter 0.9mm) |
Specifications from the official GUANGYAN product manual. Subject to continuous improvement.
Product Details
