All-in-One Fiber Multimeters
Y9 All-in-One Fiber Multimeter
Key Features
- ✓Support lighting
- ✓Supporting memory wavelength

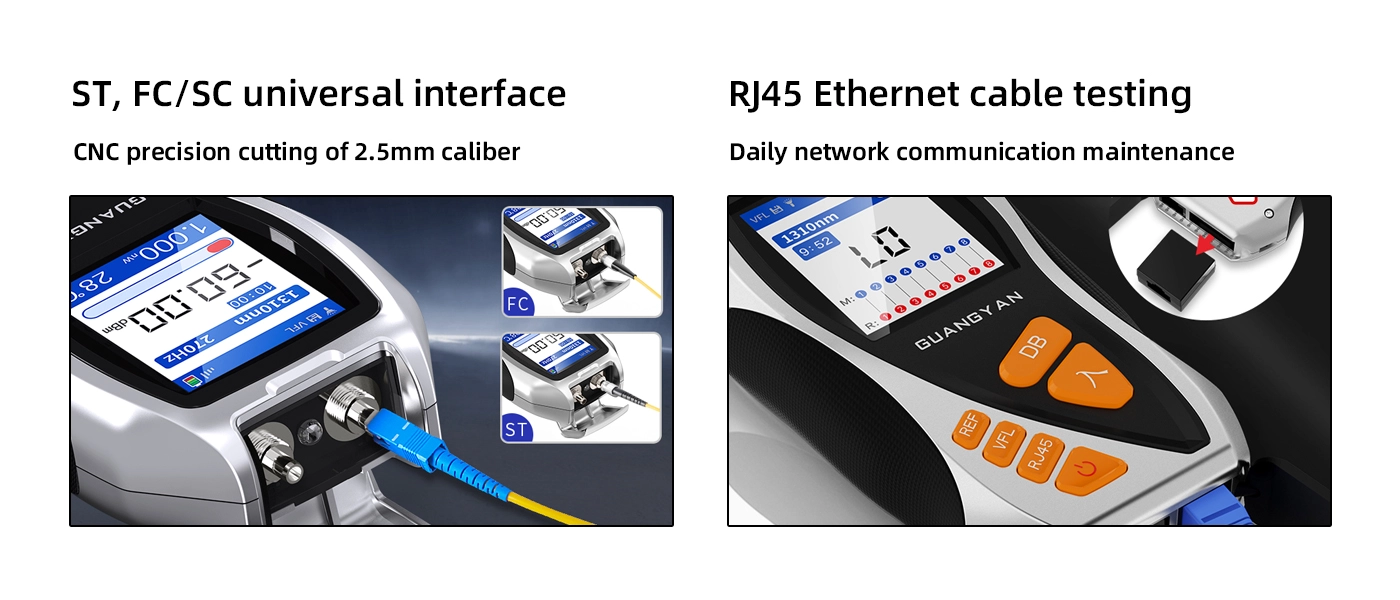

- ✓Support network test
- ✓Optical fiber job identification
- ✓Support timed shutdown
- ✓Optical fiber job identification
- ✓Supports user self-calibration
- ✓Supports temperature detection and display
- ✓Supports 4G remote control (optional)
- ✓2.4-inch high-definition color display screen
- ✓Supports flashing red light and constant brightness
Request Quote for Y9 All-in-One Fiber Multimeter

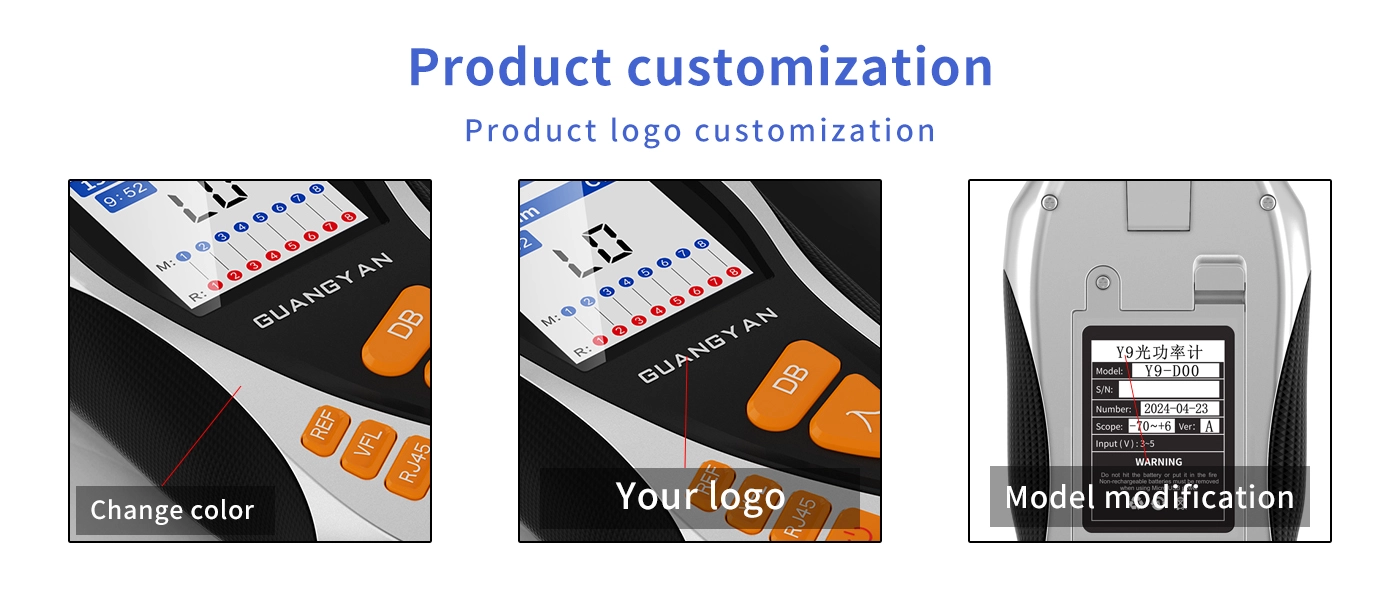

Factory-direct · OEM available · MOQ 1 pc
Specifications
| Standard wavelength | 850~1625nm |
|---|---|

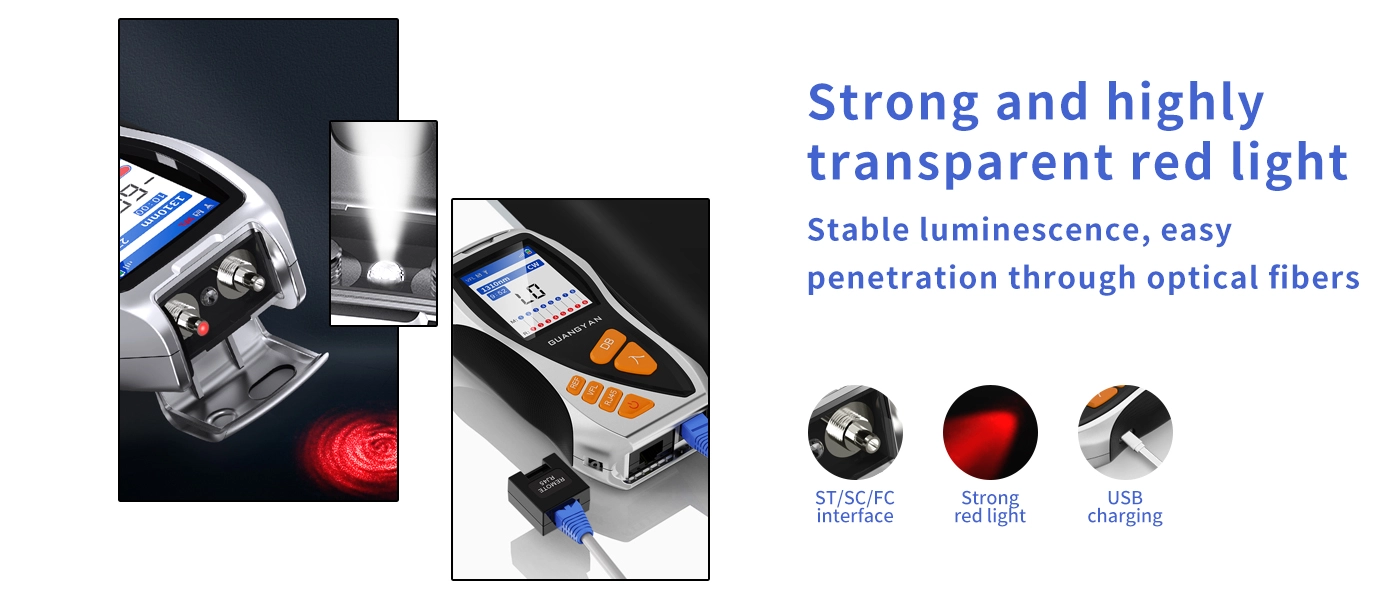

| VFL | 5/15/20/30mW optional |
| Measurement range | -70~+6 / -70~+10 / -50~+26 (dBm) |
| Power supply mode | AA*2, LIB(1500mAh) |
| Measurement accuracy | ± 5% |

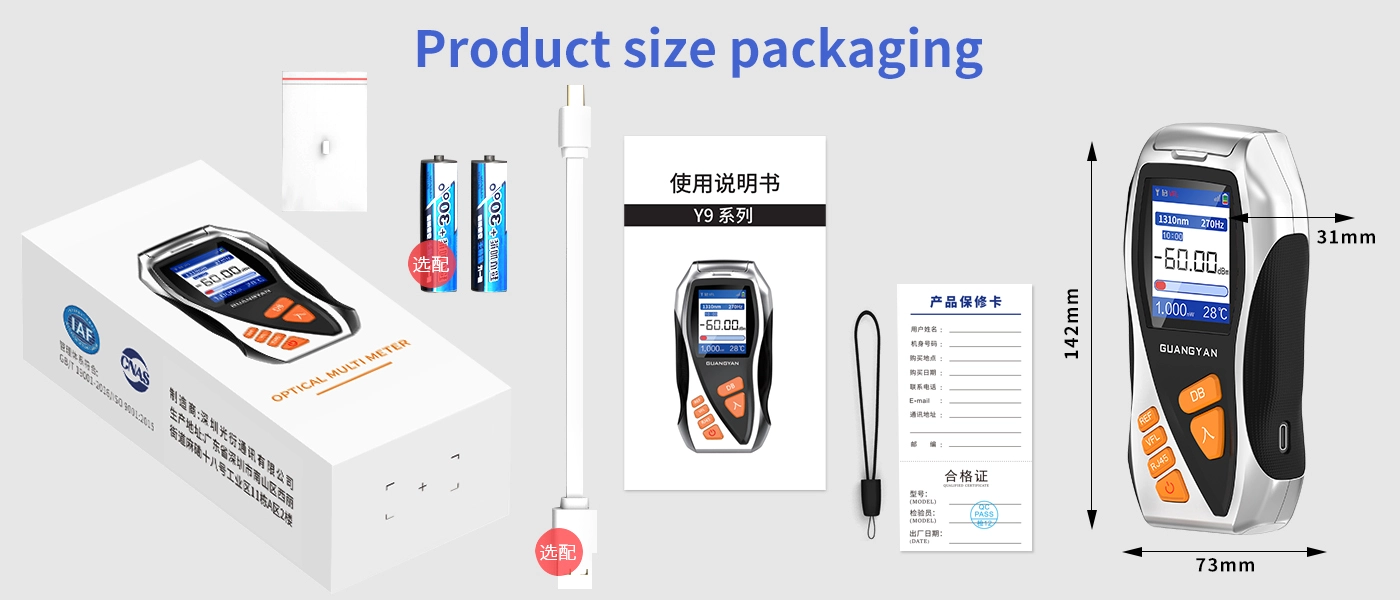

| Product size | 142 * 73 * 31mm |
| Frequency recognition | 0/270/1000/2000Hz |
| Product weight | 175-206g |
| Wireless type module | 4G |
| Display resolution | Linear display 0.1%, logarithmic display 0.01dBm |
| Data storage | 100 records |
Specifications from the official GUANGYAN product manual. Subject to continuous improvement.
