Optical Power Meters
G2 Optical Power Meter

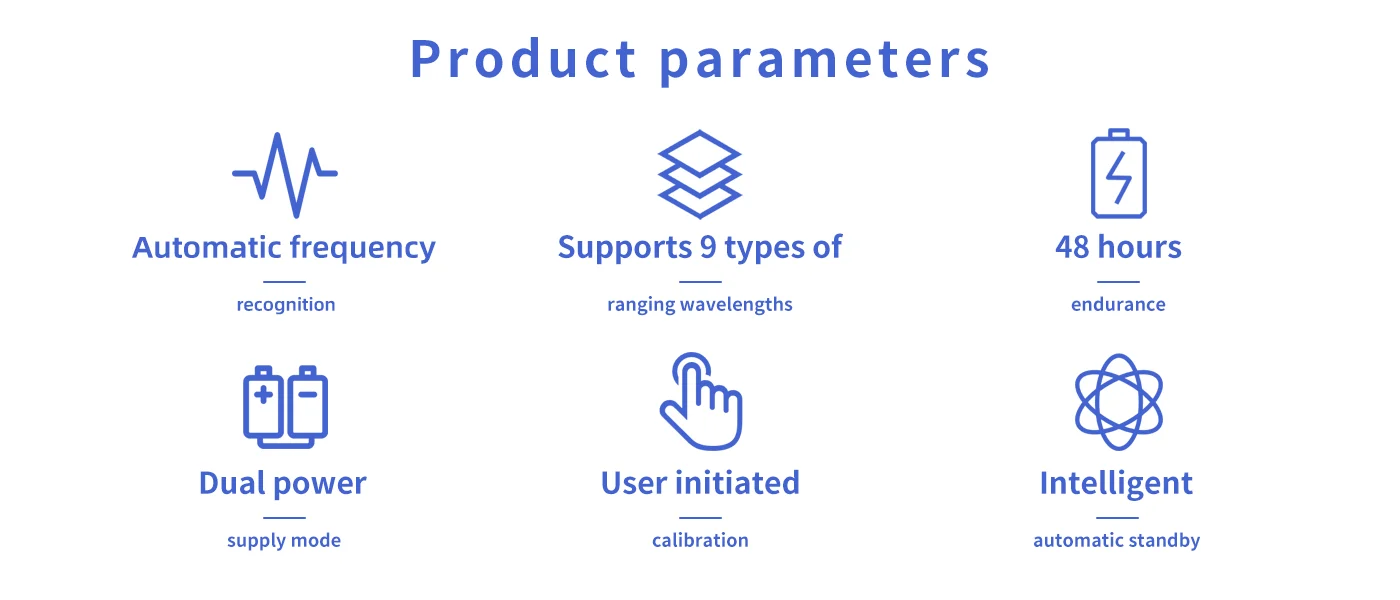

Key Features
- ✓Support lighting
- ✓Support timed shutdown
- ✓Supports the backlight switch
- ✓Supports user self-calibration
- ✓Supporting memory wavelength

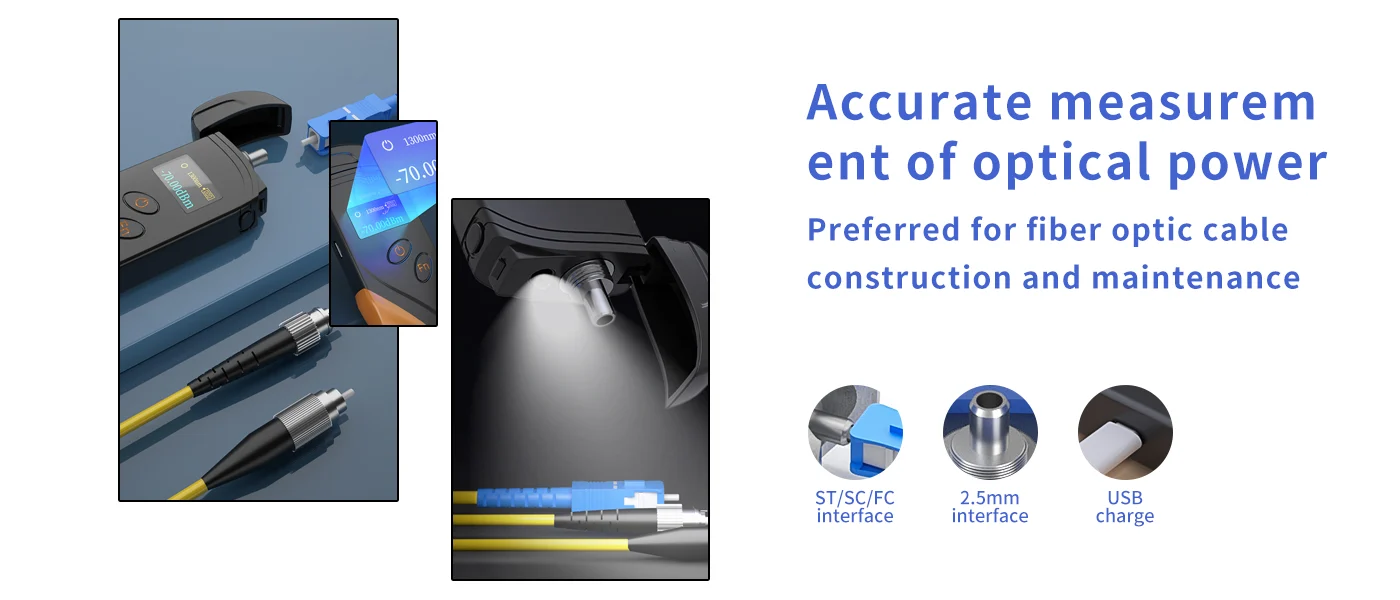

- ✓Optical fiber job identification
Request Quote for G2 Optical Power Meter

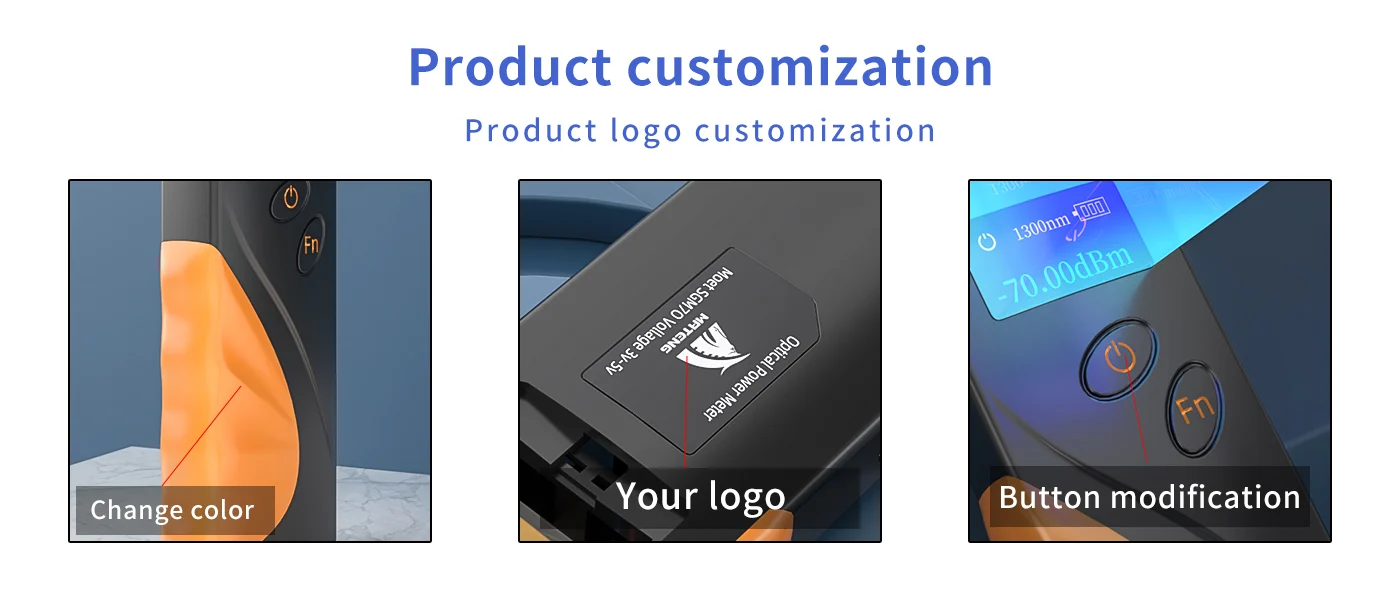

Factory-direct · OEM available · MOQ 1 pc
Specifications
| Standard wavelength | 850~1625nm |
|---|---|
| Measurement range | -70~+6 / -70~+10 / -50~+26 (dBm) |
| Measurement accuracy | ± 5% |
| Frequency recognition | 0/270/1000/2000Hz |
| Display resolution | Linear display 0.1%, logarithmic display 0.01dBm |
| Power supply mode | AAA*2, LIB(900mAh) |

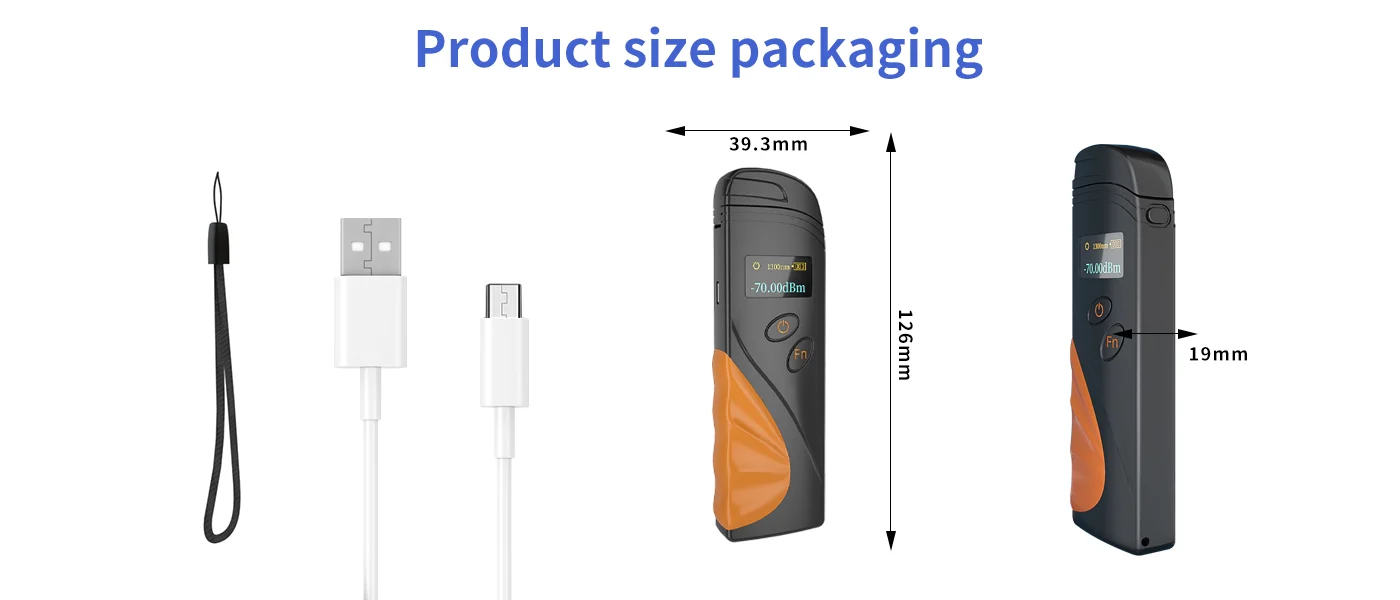

| Product size | 125 * 40 * 17mm |
| Product weight | 46-59g |
Specifications from the official GUANGYAN product manual. Subject to continuous improvement.
