OTDR
OTDR OT
Key Features

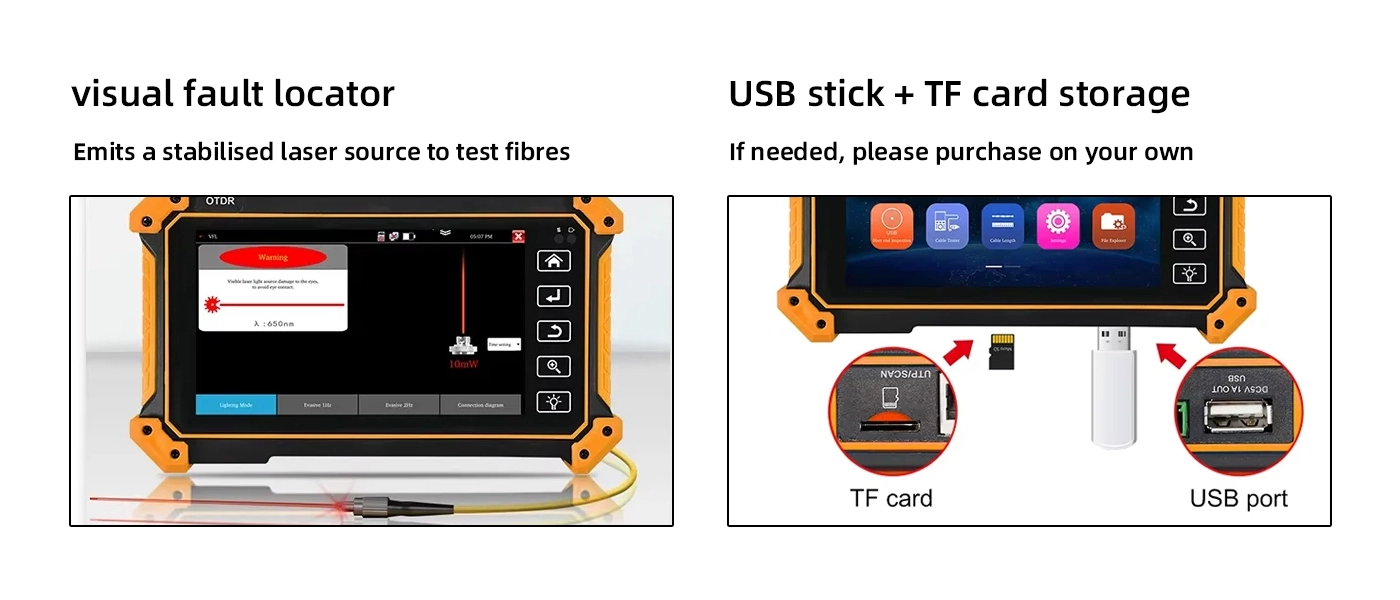

- ✓Support VFL function
- ✓Test fiber length
- ✓Locate the fault
- ✓Test the fiber repair status
- ✓Test the distance between two nodes of an optical fiber
Request Quote for OTDR OT
Factory-direct · OEM available · MOQ 1 pc
Specifications
| Working wavelength | 1550nm |
|---|---|
| Power supply mode | AA*3 |
| Fiber type | 9/125um single-mode fiber |

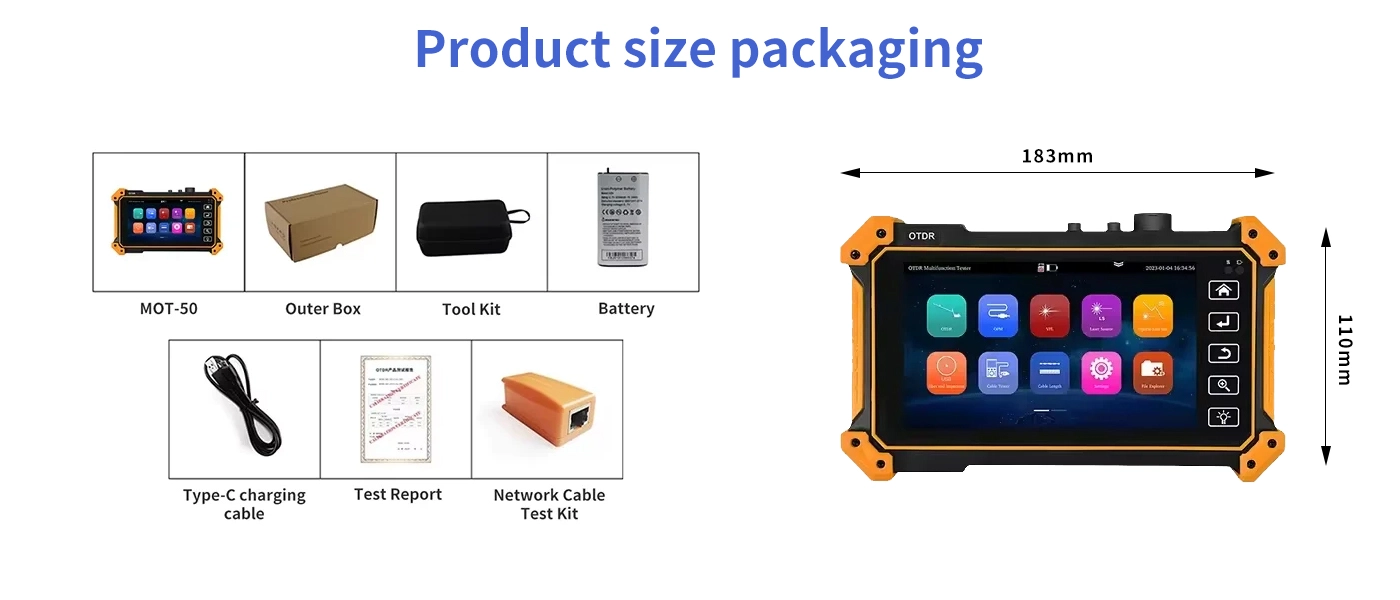

| Product size | 190 * 100 * 49mm |
| Type of connector | FC/PC |
| Product weight | 350g |
| VFL | >5mW |
| Reflection event blind zone | 15m |
| Laser peak power | ≥ 60mW |
| Distance accuracy | (±2+2*0.0001 meters to be measured) |
| Maximum display distance | Reflection event 60km (≥ 1dB), non reflection event 20km (≥ 2.5dB) |
Specifications from the official GUANGYAN product manual. Subject to continuous improvement.
Product Details
